Truck Blind Spot Detection Explained: How BSD Camera Alerts Help Drivers

A truck camera can show you what is beside or behind the vehicle. Blind Spot Detection (BSD) adds another layer: an alert when the system recognises a supported target within its monitored area. For a driver managing mirrors, traffic and a long vehicle, that reminder is an important difference.

BSD is a feature across all eight models in MCNE's current Truck Camera Systems range. The viewing arrangement, alert behaviour and installation requirements vary by model. Here is what the function actually does, and how to choose and use it sensibly.

What does BSD do on a truck camera system?

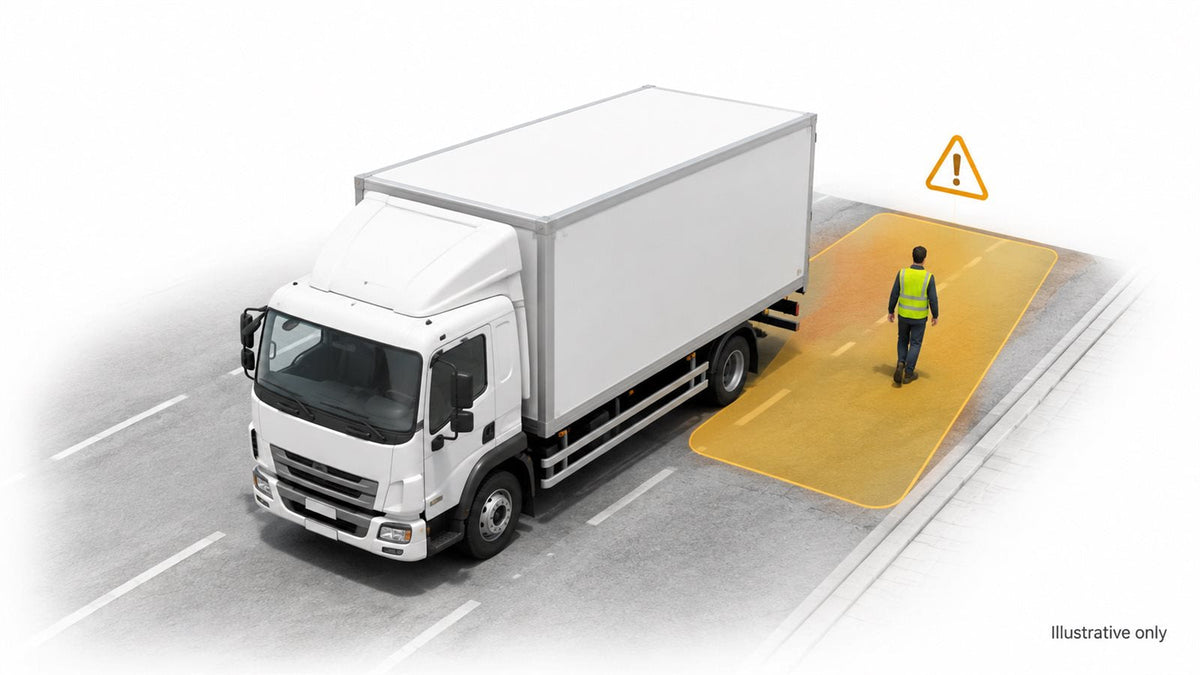

BSD stands for Blind Spot Detection. A camera-based system analyses the camera image and can draw attention to a detected target in a monitored zone. Depending on the model, supported targets and settings, this may involve an on-screen indication or an audible warning.

Think of it as an extra prompt to check the situation, not permission to move. It does not take over steering or braking, and silence does not prove that an area is clear.

Three functions are worth separating:

• Camera view: gives the driver a picture to check.
• BSD alert: draws attention to a supported target detected in the monitored area.
• DVR recording: saves footage for later review, where supported and correctly configured.

A system can offer all three, but recording alone does not provide a blind-spot warning.

Where can blind-spot alerts be useful?

Large vehicle bodies can obscure areas alongside the cab, down the sides and behind the vehicle. People and vehicles may enter those areas while the driver is checking another mirror or view.

A suitably positioned and configured system can provide an additional prompt during side checks, depot manoeuvres or reversing. Which situations it supports depends on camera placement, active channels and the model's detection settings. A rear-facing camera cannot also see an obstructed area beside the front of the cab.

Pedestrian detection is particularly relevant around loading areas and shared workspaces. However, do not assume that every model recognises pedestrians, cyclists, cars and small obstacles in the same way. Confirm the supported target types for the exact system.

Seeing an area is not the same as monitoring it

The picture on the monitor and the BSD detection zone are not necessarily identical. An object may be visible in the image but outside the configured alert area, or may not be recognised as a supported target.

Where calibration is available, the zone must suit the actual camera mounting position and vehicle. Copying another truck's settings is not a substitute for checking the installation.

Likewise, four camera feeds do not automatically create a stitched 360-degree view or eliminate every blind spot. Coverage still depends on where the cameras point and what blocks their view.

Are sound and light alarms included?

An external sound-and-light alarm is an additional accessory, not standard equipment across the range. Check compatibility and arrange the required installation if you want one.

That accessory is separate from any alert shown or played through the system's own monitor or app. Do not assume every model has the same speaker, warning graphics, volume settings or alarm connections. Ask how your chosen model delivers its BSD alert before ordering.

If an external alarm is important for your application, confirm the accessory, wiring and intended warning behaviour with MCNE. A BSD feature label by itself does not establish what extra hardware is supplied.

Two MCNE configurations to compare

TA133: wired four-camera monitoring

The TA133 10.1-inch wired BSD camera system uses four camera inputs and supports split-screen viewing. It is a configuration to consider when you want permanently routed camera connections. Confirm external alarm requirements separately.

TA135: wireless cameras with a dual-screen monitor

The TA135 15.88-inch four-camera wireless system combines a dual-screen arrangement with BSD and pedestrian collision warning assistance. Wireless video transmission does not remove the need to power the cameras or check signal stability on the vehicle.

These are examples of different installations, not a claim that only these two have BSD. Browse the full MCNE Truck Camera Systems range and match the format to your vehicle and working conditions.

Get the setup right before relying on alerts

1. Plan the views. Identify the areas you need to see, then choose suitable mounting positions without obstructing vehicle equipment.
2. Use a qualified installer. Have vehicle wiring and any additional alarm connections handled by a qualified auto electrician or professional installer.
3. Check the image and settings. Confirm channel labels, image orientation, active BSD settings and calibration where supported. Follow the model's instructions.
4. Test safely. With the vehicle stationary and secured, verify the intended views and alert behaviour according to the manual. Never test by driving towards a person.
5. Recheck after changes. A moved camera, changed load or different trailer can affect the view. Keep lenses clean and investigate missing images or unusual warnings.

What are the limitations?

Glare, darkness, rain, dirt and obstructions can make camera images harder to interpret and can affect detection. A target hidden behind another object may not be detected. Wireless interruptions, loss of power or incorrect settings can also stop a useful alert reaching the driver.

Do not treat repeated nuisance warnings as a reason to ignore the system. Review the installation and settings with your installer. Never interpret a quiet system as an all-clear.

Continue normal mirror and direct-vision checks, safe manoeuvring procedures and the use of a spotter where appropriate. BSD supports driver awareness; it does not guarantee detection or prevent a collision.

Choose the warning setup, not just the screen size

Before buying, confirm five things: the views you need, supported detection targets, how alerts reach you, whether an external alarm is required, and who will install and check the system.

Explore MCNE Truck Camera Systems, or contact MCNE with your vehicle type and monitoring needs.
