What Is a Reversing Camera Trigger Wire and How Does It Work?

A reversing camera can produce a clear video image, but your display still needs to know when you have selected reverse. In many aftermarket systems, that instruction comes from a small reverse trigger wire.

The trigger wire is easy to misunderstand because it runs alongside other camera wiring. Its main job is to send a signal that tells a compatible monitor or dash cam display to switch to the rear-camera view. It is not normally the video connection, and it should not be assumed to power the entire system.

What happens when you select reverse?

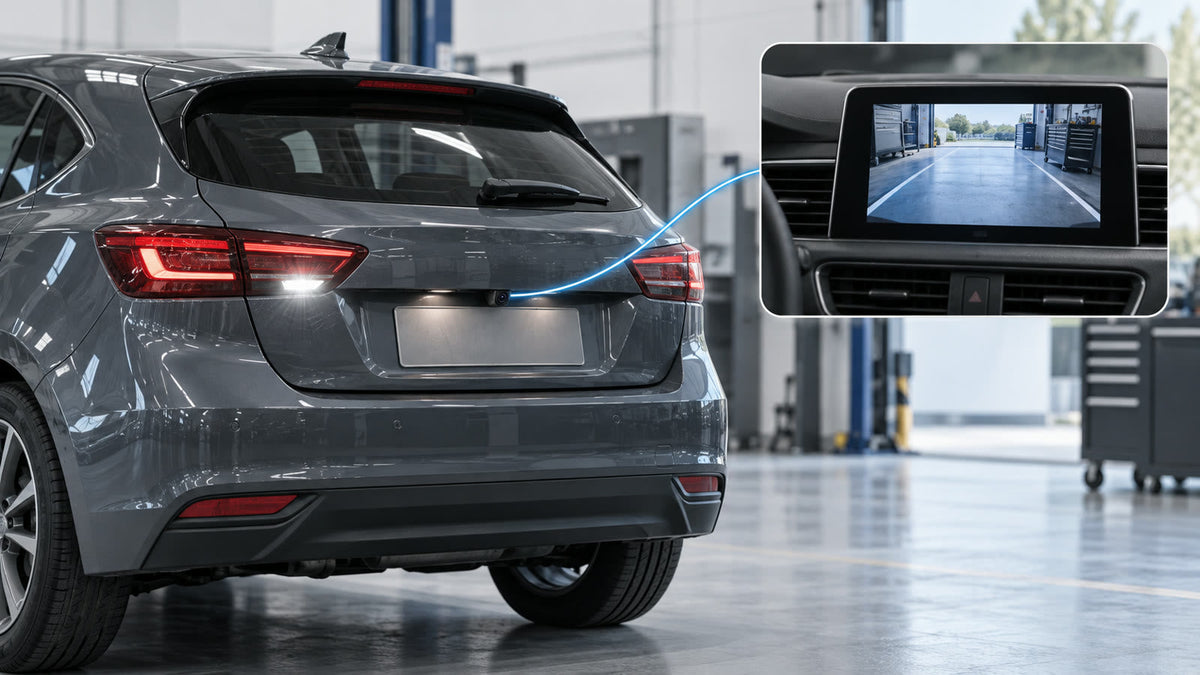

In a typical compatible installation, the reverse trigger wire is connected to the positive reversing-light circuit. When reverse gear is selected, that circuit becomes active. The display detects the signal and changes to the rear view. When the signal ends, the display returns to its previous screen.

The exact wiring arrangement varies by vehicle and product. Some systems power the rear camera from the reversing-light circuit; others keep the camera powered from a separate source and use the reverse wire only as a signal. Always follow the supplied instructions for the specific camera and monitor.

Trigger, power and video are different

It helps to separate the three functions:

• Video connection: carries the camera image to the display or recorder.
• Camera power: supplies the voltage required by the rear camera.
• Reverse trigger: tells a compatible display that reverse has been selected.

A trigger wire cannot carry the full rear-camera picture. A connected video cable does not, by itself, tell every display to switch automatically. Missing or incorrect trigger wiring is one reason a rear image may work when selected manually but fail to appear automatically in reverse.

Continuous rear recording versus reverse priority

A dual-channel dash cam may record the rear camera whenever the recorder is operating. Reverse priority is a separate display behaviour: it brings the rear image onto the screen while you are reversing. The same rear camera can therefore be recording normally before the trigger signal arrives.

The MCNE 4K WiFi Dual Dash Cam with 1080P Rear Window Camera, for example, records front and rear video. Its product page also states that, when correctly connected to the reversing-light circuit, the display can switch to the rear camera while reverse is engaged.

The 10-inch 4K Dual-Channel Streaming Mirror Dash Cam similarly supports an automatic rear image and parking guide lines when connected to the reverse signal. These are confirmed features of those models, not a promise that every dash cam or rear camera behaves the same way.

Does the trigger wire create parking guide lines?

No. The wire only provides a reverse signal. Parking guide lines, adjustable viewing angles and image flipping are functions of the camera or display. Some systems show fixed lines, some provide adjustable lines and others show none. Check the product specifications and settings.

Guide lines are a reference, not a measurement of safe clearance. Camera position, mounting height and lens angle change how distance appears. Always use mirrors, direct observation and the vehicle's original safety systems as well.

Where is the trigger wire connected?

On many vehicles it is connected at the positive wire feeding a reversing lamp, but wire colours and vehicle electrical designs are not universal. Modern vehicles may use monitored lighting circuits, pulse-width modulation, body-control modules or other electronics that make a simple connection inappropriate.

Do not identify a wire by colour alone. A qualified automotive electrician or experienced installer should confirm the circuit with suitable test equipment and make an insulated, mechanically secure connection. They can also determine whether a relay, interface or alternative signal source is required for the vehicle.

Why might automatic reverse view not work?

If the camera image is available manually but the screen does not switch in reverse, possible causes include:

• the trigger wire is not connected or is connected to the wrong circuit;
• the connection is loose or poorly insulated;
• the signal is not reaching the display end of the cable;
• reverse priority is disabled in the device settings;
• the camera, monitor or video format is not compatible; or
• the vehicle's reversing-light circuit requires a different installation method.

If there is no rear image at all, also check camera power, video plugs and compatibility. Treat trigger diagnosis separately from a video or camera-power fault.

Rear-window and external camera installations

A rear-window camera is mounted inside the vehicle and avoids drilling through an exterior panel, but its view can be affected by tint, reflections, a dirty window or rain on the glass. An external reversing camera can give a direct view behind the vehicle, but cable routing, sealing and mounting require extra care.

Choose the location before running cable. Confirm that the boot, tailgate or hatch can move normally, leave appropriate cable protection at moving joints, and keep wiring away from airbags, sharp edges, heat and moving components.

Before the final test

1. Confirm the correct product instructions and vehicle circuit.
2. Check that camera power and video work.
3. Select reverse and confirm that the screen switches automatically.
4. Check image orientation and any guide-line setting.
5. Test again with the engine running, then secure and protect all wiring.

The reverse trigger wire is a small part of the installation, but it controls an important convenience: getting the rear view at the moment it is needed. Correctly identifying its purpose helps avoid confusing a switching problem with a failed camera.

For broader selection advice, read How to Choose a Reversing Camera for Your Vehicle and How to Install a Front and Rear Dash Cam in Your Car.

This guide explains common aftermarket arrangements only. Product functions and vehicle wiring vary. Use the instructions supplied with the equipment and seek professional installation when connecting to vehicle circuits.
