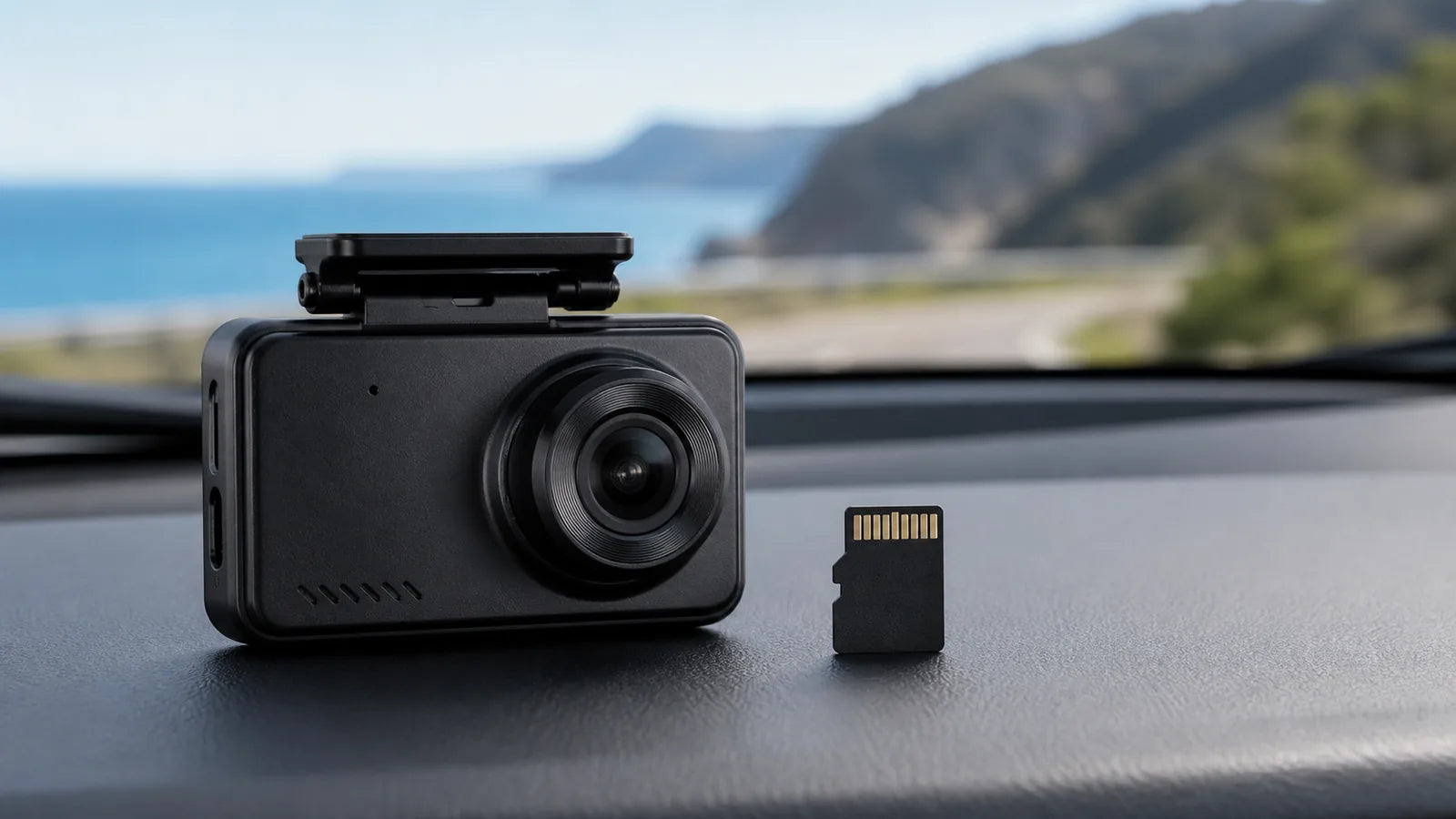

Dash Cam Memory Cards Explained: Capacity, Compatibility and Care

A dash cam memory card is not permanent storage. The camera records in a loop, replacing older unlocked files as the card fills. Choosing the right card therefore means checking compatibility, capacity, write performance and durability—not simply buying the largest or fastest card available.

Requirements vary by dash cam. Always follow the maximum capacity, card type and formatting instructions for the exact model.

How loop recording uses the card

Most dash cams divide video into short files. When available space runs out, loop recording overwrites the oldest unlocked file and continues recording. The camera may protect a clip after a button press or a supported G-Sensor event, but protected files still occupy space.

Copy important footage to a phone or computer promptly. Do not rely on the card to preserve an incident indefinitely, especially if the camera continues operating for many hours afterwards.

32GB, 64GB or larger?

A larger compatible card usually retains more footage before older files are overwritten. It does not improve video quality. The most suitable capacity depends on:

• front, rear, cabin or multi-channel recording;
• resolution and frame rate for each channel;
• video compression and bit rate;
• whether audio is recorded;
• parking or continuous recording; and
• how often footage is reviewed and saved.

A multi-channel or high-resolution dash cam normally uses storage faster than a simple front-only camera. There is no accurate universal recording-time table because cameras can create very different file sizes at the same headline resolution.

Check the maximum supported capacity

Do not assume a dash cam accepts every microSD card. The camera firmware and file system may limit the supported capacity. A card larger than the stated maximum may fail to format, stop recording or behave unpredictably.

Check whether the camera requires microSDHC or microSDXC, the supported capacity range and any stated speed class. If a product includes a card, confirm its capacity on the current product page rather than assuming every bundle is identical.

Speed class matters, but compatibility comes first

A dash cam writes video continuously, sometimes from several cameras at once. The card must sustain the write rate required by that model. Labels such as Class 10, U1, U3, V10 or V30 describe different performance classifications, but a higher label alone does not guarantee compatibility.

Use the specification recommended by the camera manufacturer. An unsupported card can still cause recording gaps, card errors or failed files even when its advertised peak speed appears high.

Why high-endurance cards are useful

Dash cams repeatedly write and erase data, often inside a vehicle exposed to heat and cold. Cards designed for high-endurance video recording are generally a sensible choice because they are intended for repeated write cycles. Even an endurance card is a consumable item and should be checked regularly.

Buy from a reputable source. Counterfeit or mislabelled cards may report a false capacity and can corrupt footage when the genuine storage limit is reached.

Included cards differ between products

Some MCNE dash cams include a card, while other cameras or monitor kits do not. For example, the MCNE 4K triple-lens dash cam lists an included 32GB card for its front, cabin and rear recording system.

The MCNE 4K front and rear dash cam with GPS and hardwire kit lists an included 64GB card. These examples do not establish the maximum capacity for another model; check each product page and manual individually.

Format the card in the dash cam

When instructed, format a new compatible card using the camera’s own menu or app. This lets the device create the file structure it expects. Formatting erases footage, so copy anything important first.

Periodic formatting may help clear fragmented or accumulated protected files, but follow the model instructions. Never remove the card while the camera is writing. Switch the camera off and allow it to finish saving the current file before removal.

Signs that a card needs attention

• The camera repeatedly reports a card or formatting error.
• Recording stops or restarts unexpectedly.
• Files are missing, corrupted or cannot be played.
• The displayed capacity is incorrect.
• The camera asks for frequent formatting despite correct setup.

First confirm that the card meets the model specification, then format and test it as directed. Replace the card if errors continue. Also check the camera’s power supply, because unstable power can sometimes look like a storage fault.

Downloading and backing up footage

A WiFi dash cam may let a nearby phone download selected clips through its compatible app. This is convenient for a few files, but a card reader can be faster for a large batch. Read What Does WiFi Mean on a Dash Cam? to understand the local phone connection.

After an incident, save the original file without editing, confirm that the copy plays correctly and keep a backup. The exact way footage, GPS data or multiple camera streams are displayed depends on the model and software.

A practical buying checklist

1. Confirm the supported card type and maximum capacity.
2. Use the required speed class and preferably an appropriate endurance card.
3. Consider channel count and recording quality when choosing capacity.
4. Format the card in the camera when instructed.
5. Review recording status and test saved files regularly.
6. Back up important footage immediately.

Explore MCNE Dash Cameras and check each model’s included card and supported storage specifications before ordering.
